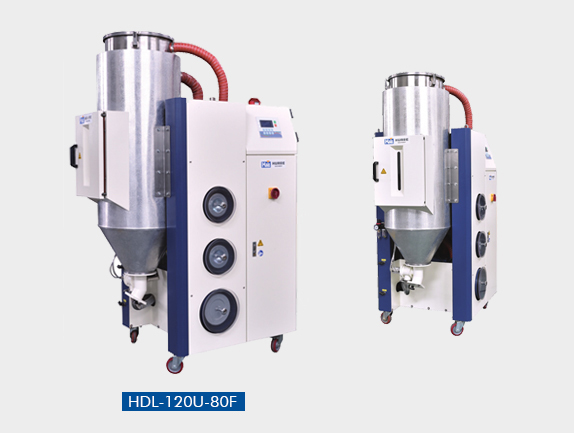

HDL Dehumidifying & Drying & Loading
Basic introduction
Model definition
Special Features
Note
Integrated dehumidification, drying, and feeding functions in one, the dew point can reach below -40° in an ideal state, the appearance is beautiful and generous, the structure is simple and reasonable, and the maintenance is convenient;
Suitable for engineering plastics with strong moisture absorption, such as: PA, PC, PBT, PET, ABS, etc.
|
Type
|
Unit
|
HDL-80U
-50F
|
HDL-120U
-80F
|
HDL-180U
-120F
|
HDL-300U
-200F
|
HDL-450U
-300F
|
HDL-600U
-400F
|
HDL-900U
-600F
|
HDL-1200U
-800F
|
HDL-1500U
-1000F
|
|
Drying hopper capacity
|
L
|
80
|
120
|
180
|
320
|
460
|
660
|
900
|
1200
|
1500
|
|
Dry air capacity
|
m³/hr
|
50
|
80
|
120
|
200
|
300
|
400
|
600
|
800
|
1000
|
|
Heater power
|
kW
|
4
|
6
|
8
|
10.5
|
15
|
18
|
25
|
25
|
32
|
|
Blower power
|
kW
|
0.4
|
0.7
|
0.85
|
1.6
|
2.2
|
4
|
5.5
|
8.5
|
12.5
|
|
Regen heater power
|
kW
|
3
|
4.5
|
4.5
|
6
|
7.5
|
7.5
|
10
|
12.5
|
15
|
|
Regen blower power
|
kW
|
0.2
|
0.2
|
0.2
|
0.4
|
0.55
|
0.7
|
1.3
|
1.6
|
2.2
|
|
Transporting blower power
|
kW
|
1.3
|
1.3
|
1.3
|
1.8
|
1.8
|
1.8
|
2.2
|
2.2
|
2.2
|
|
Pipe diameter
|
Inch
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
2
|
2
|
2
|
|
Weight
|
kg
|
270
|
290
|
320
|
500
|
520
|
600
|
1000
|
1200
|
1350
|
|
|
|

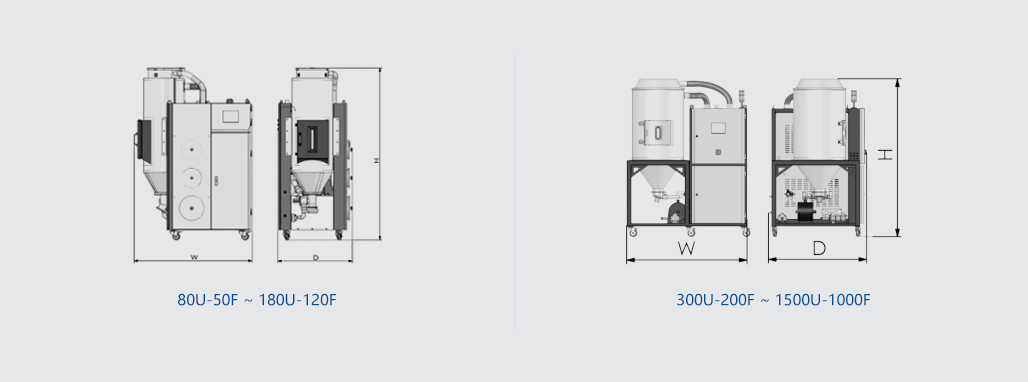

Dimensions
|
|
|
|
|
|
|
|
|
|
|
|
H
|
mm
|
1830
|
1930
|
2130
|
2080
|
2170
|
2460
|
2700
|
3000
|
3200
|
|
W
|
mm
|
1250
|
1310
|
1310
|
1575
|
1710
|
1710
|
2200
|
2500
|
2550
|
|
D
|
mm
|
800
|
870
|
870
|
1280
|
1280
|
1280
|
1390
|
1600
|
1700
|
Note
Standard voltage: 3 Phase, 380V, 50 Hz;
Have any special needs, please contact us.
Specifications are subject to change without prior notice.
HDL - AAA U - BBB F - CCC
HDL=HUARE Dehumidifying & Drying & Loading
AAA=Drying barrel capacity (L)
BBB=Air volume (m³/ hr)
CCC=DP = Install dew point meter; HL= HLINK Networking function; 1 TO 2 host Transporting
The honeycomb wheel dehumidifier can provide low dew point drying air below - 40 ℃;
Standard configuration LCD screen controller, complete functions and convenient operation;
P.I.D. Temperature control system, which can precisely control dryness and regeneration temperature;
Double insulated container of stainless steel and wind-blowing from the bottom guarantees no heat loss, stable drying temperature and efficiency;
Fully closed feeding system, that prevents materials from absorbing moisture after being dried.
Standard configuration cut-off suction box to avoid moisture regain of surplus material in pipeline;
It has over temperature protection, motor overload, reverse phase protection and other alarm protection and functions;
Clients can choose, based on their actual needs, one to one, one to two or two to one models, and all of which Combine dehumidifying, drying and two section -feeding.
Dew Point Meter can be optional
HLINK networking function can be optional
Three- section feed 1TO 2 function can be optional
