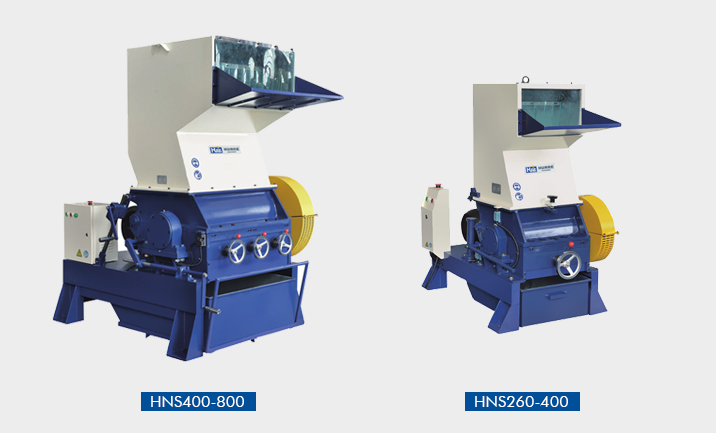

HNS series granulator is applied to crush all kinds of plastics, including massive, rotundity, strip. It will play In the plastic industry, the plastic defective, waste, outlet material processing plays an important role in the rapid recovery , Improve the plastic utilization.

Type	Unit	HNS260-400	HNS260-500	HNS260-600
Motor power	kW	7.5	11	11
Rotating speed	rpm	650	650	580
Rotor blades	Pcs	6	6	6
Fixed blades	Pcs	2	2	4
Weight	kg	470	565	640
Infeed opening	mm	260×400	260×500	260×600
Crushing rotary size	mm	Ø260×400	Ø260×500	Ø260×600
Screen size	mm	Ø10	Ø10	Ø10

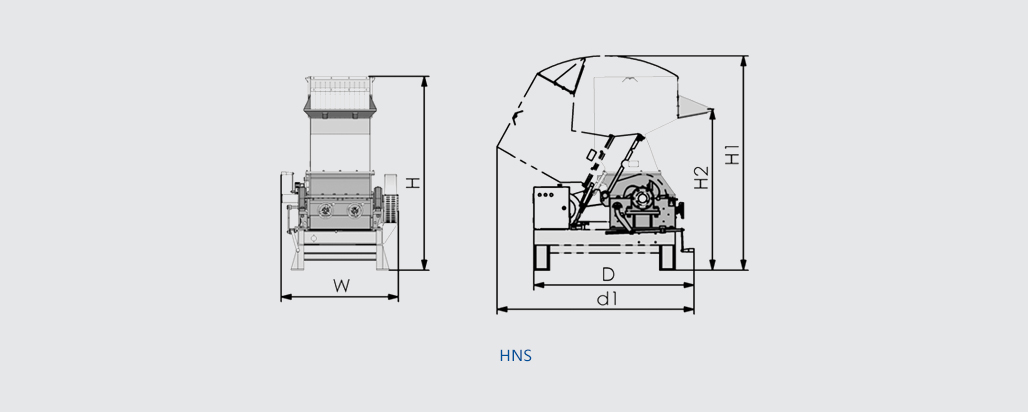

Dimensions
H	mm	1420	1465	1460
H1	mm	1510	1550	1550
H2	mm	1190	1230	1230
W	mm	855	915	1050
D	mm	1270	1330	1375
d1	mm	1365	1370	1370

Type	Unit	HNS400-600	HNS400-700	HNS400-800	HNS400-1000
Motor power	kW	15	18.5	22	30
Rotating speed	rpm	580	590	560	560
Rotor blades	Pcs	6	6	6	6
Fixed blades	Pcs	4	4	4	4
Weight	kg	1200	1300	1500	1700
Infeed opening	mm	400×600	400×700	400×800	400×1000
Crushing rotary size	mm	Ø400×600	Ø400×700	Ø400×800	Ø400×1000
Screen size	mm	Ø12	Ø12	Ø12	Ø12

Dimensions
H	mm	1940	1940	1990	2000
H1	mm	2170	2170	2215	2230
H2	mm	1590	1590	1640	1652
W	mm	1190	1290	1435	1635
D	mm	1830	1830	1840	1840
d1	mm	1965	1965	1965	1965

Note

The standard voltage is 3 Phase, 380V, 50 Hz.

The maximum crushing capacity depends on screen hole, mate- rial etc.

Have any special needs, please contact us.

We reserve right to change specifications without prior notice.

HNS - AAA - BBB - CCC

HNS:HUARE N type concentrated granulator

AAA:Crushing rotary diameter(mm)

BBB:Crushing chamber width(mm)

CCC:Material out way; Blank = Manual box; F=Fan feed;

Using “V type” cutting technology ,decrease abrasion between blades and crushing chamber ,improve service lift of blades .

Using spherical roller bearings, bearing housing external structure, good heat dissipation.

Crushing chamber use half-open structure .

The bottom of screen open and rocker open structure .

Using all close safety covers with wheels .

Cutting chamber open by mechanical, saving and safety.
