HAL vacuum Auto-Loader is equipped with a stainless steel hopper, high performance vacuum motor, motor overload protective device and idle alarm. It is compact, durable, easy installation and operation with strong vacuum suction.
|
Type
|
Unit
|

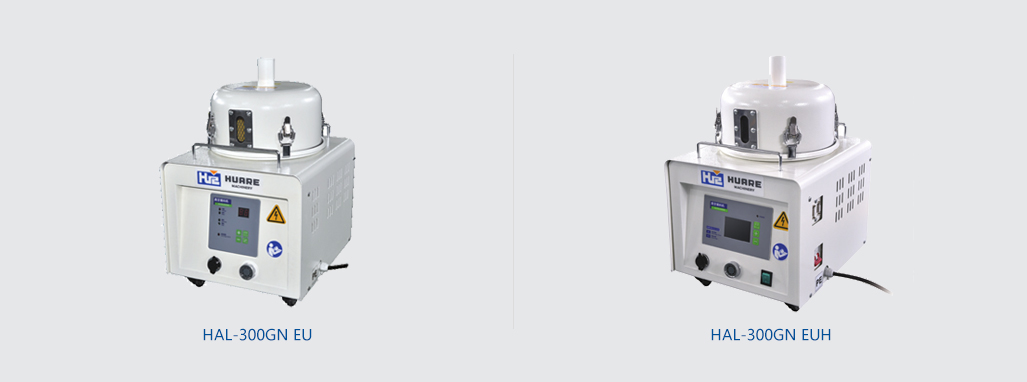

HAL -300GE
|
HAL-300GN EU
HAL-300GN EUH
|
HAL-1.5P EU
HAL-1.5P EUH
HAL-1.5P EUL
|
HAL-2.5P EU
HAL-2.5P EUH
HAL-2.5P EUL
|
HAL-3P EU
HAL-3P EUH
HAL-3P EUL
|
|
Motor type
|
|
Carbon brush
|
Inductive
|
|
Motor power
|
kW
|
1.1（1￠）
|
1.1（3￠）
|
1.8（3￠）
|
2.2（3￠）
|
|
conveying capacity
|
kg/hr
|
350
|
400
|
450
|
550
|
630
|
|
Matching hopper
|
|
MH 6L
|
MH 6L
|
MH 6L
|
MH 12L
|
MH 24L
|
|
Material pipe/Air pipe
|
Inch
|
1.5/1.5
|
1.5/1.5
|
2.0/2.0
|
|
Weight
|
kg
|
15
|
39
|
76
|
85
|
95
|
|
|
|
Dimensions
|
|
|
|
HAL- XX P EU/EUH
|
HAL-XX P EUL
|
|
H
|
mm
|
630
|
530
|
1000
|
1100
|
|
W
|
mm
|
305
|
330
|
350
|
500
|
|
D
|
mm
|
530
|
380
|
600
|
600
|
|
Type
|
Unit
|
HAL-1.5P-D EUH
HAL-1.5P-D EUL
|
HAL-2.5P-D EUH
HAL-2.5P-D EUL
|
HAL-3P-D EUH
HAL-3P-D EUL
|
HAL-5P EUL
HAL-5P-D EUL
|
HAL-10P EUL
HAL-10P-D EUL
|
|
Motor form
|
|
Inductive
|
|
Motor power
|
kW
|
1.1（3￠）
|
1.8（3￠）
|
2.2（3￠）
|
4.0（3￠）
|
7.5（3￠）
|
|
Conveying capacity
|
kg/hr
|
450
|
550
|
630
|
700
|
1400
|
|
Matching hopper
|
|
MH 6L X1
PH 6L X1
|
MH 12L X1
PH 12L X1
|
MH 24L X1
PH 24L X1
|
MH 24L X1
|
MH 36L X1
|
MH 24L X1
PH 24L X1
|
MH 36L X1
PH 24L X1
|
|
Mat. tube
/Air tube
|
Inch
|
1.5/1.5
|
2.0/2.0
|
2.0/2.0
|
2.0/2.5
|
|
G.W.
|
kg
|
95
|
112
|
128
|
110/145
|
135/165
|
|
|
|
Dimensions
|
|
HAL- XX P-D EUH
|
HAL- XX P-D EUL
|
|
|
|
H
|
mm
|
1100
|
1100
|
1100
|
1300
|
|
W
|
mm
|
500
|
630
|
520/650
|
570/700
|
|
D
|
mm
|
600
|
600
|
600
|
750
|
|
Item
|
Unit
|
Mechanical hopper
|
Electric eye hopper
|
|
Type
|
|
MH 6L
|
MH 12L
|
MH 24L
|
MH 36L
|
PH 6L
|
PH 12L
|
PH 24L
|
PH 36L
|
|
H
|
mm
|
445
|
545
|
740
|
940
|
645
|
745
|
940
|
1140
|
|
W
|
mm
|
250
|
320
|
320
|
320
|
250
|
320
|
320
|
320
|
|
D
|
mm
|
335
|
385
|
385
|
385
|
355
|
385
|
385
|
385
|
Special Features
The main controller and the hopper are two separate units, safe and
convenient to use;
Independent filter and easy to clean;
Stainless steel hopper, light, durable and easy to clean;
Independent controller box, easy for maintenance;
Auto alarm for idling.
EUH model standard with Main Power Switch & PLC+Touch screen HMI
EUL model standard with Main Power Switch & Filter Spray Clean
& PLC+Touch screen HMI
EUH & EUL model RS485 Network can be optional
Note
Standard voltage: 300GE AND 300GN 1 Phase, 220V, 50 Hz,
other types 3 Phase, 380V, 50 Hz;
Have any special needs, please contact us.
Specifications are subject to change
without prior notice.
HAL - AAA - BBB - CCC DDD
HAL:HUARE Vacuum Auto-Loader
AAA:300=Single phase 1.5P air pump；1.5/2.5/3/5/10:All three-phase pump HP；
BBB:GE = direct suction；GN = Separated；HP = Separated / motor HP number
CCC:D = two- section suction； E = Configure the photoelectric hopper U = European configuration
DDD:EU = Streamlined；EUH = Streamlined LCD panel configuration；EUL = Streamlined European configuration；
HAL 1 TO N
The one-to-many suction machine includes three parts: the host part, the hopper group part, and the bracket pipeline part. The definition of the host part and the hopper component is as follows:
The road part should be confirmed separately according to the customer's on-site situation.
Host part
HAL - AAA - 1TN - BBB
BBB:Separating valve arrangement form;CDV=Centralized integrated separation valve;PDV=Pipeline integrated separation valve;HDV=Hopper integrated separation valve;
1TN:1 pair N point feeding（N：3~5）
AAA:Main specifications of vacuum suction machine
Hopper group part
MH XX * AA + PH XX * BB
PH XX * BB:Electric eye hopper specification * Number of choices
MH XX * AA:Mechanical hopper specification * Number of choices
The main unit and the bucket are separated and designed for safety and convenience;
Microcomputer control operation;
Independent filter device to facilitate the removal of dust;
Stainless steel storage barrel, light and durable, good clear material;
The control box is designed independently and easy to maintain;
Automatic buzzer alarm protection device for lack of material;
EU single-segment model configuration digital tube computer board, EU dual-segment model configuration LCD computer board;
EUH models are equipped with main power switch & LCD display & RS485 networking function
EUL models are equipped with main power switch & filter pulse spray washing & LCD display & RS485 networking function
The two-stage model is only suitable for EUH or EUL configuration. The EU digital tube computer board is not equipped with the two-
stage model.
